From Higher Capacity and Lower Sag to Verification and Grid Intelligence
The electric power industry is experiencing an extraordinary period of change. Electricity demand is growing, new generation and large loads are waiting for interconnection, transmission congestion continues to increase, and developing entirely new transmission corridors remains difficult, expensive and time consuming. These challenges have helped bring much greater attention to advanced and high-performance conductors as utilities look for ways to increase the capacity, efficiency, reliability and resilience of both existing and new transmission systems.
For CTC Global, this conversation began more than two decades ago.
When the company began developing what became the ACCC® Conductor, steel-reinforced conductors dominated the overhead transmission industry and had served utilities extremely well for generations. But their basic architecture also created inherent compromises among weight, strength, electrical resistance, thermal expansion and sag. CTC Global’s engineers began asking whether modern materials and a different conductor architecture could substantially improve that equation.
The result was ACCC Conductor, commercialized in 2005 following extensive laboratory testing and energized field trials.
Rethinking the Traditional Conductor
Instead of relying on a steel reinforcing core, ACCC Conductor uses a lightweight, high-strength carbon-fiber composite core surrounded by a protective fiberglass layer. The substantially lighter core allows more conductive aluminum to be incorporated into a conductor of comparable diameter and weight, while the composite core’s very low coefficient of thermal expansion substantially reduces thermal sag.
Together, these characteristics allow ACCC Conductor to carry substantially more current while maintaining required clearances at elevated operating temperatures. The additional aluminum content also reduces electrical resistance and associated line losses, helping utilities make better use of existing generation resources while reducing operating costs and associated emissions.
Perhaps most importantly, these benefits can often be achieved while utilizing existing structures and existing transmission rights-of-way. That capability has become increasingly valuable as permitting, siting, land acquisition and construction timelines for new transmission corridors have become more challenging.
As adoption increased, industry standards followed. In 2014, ASTM International published ASTM B987, establishing a standard specification for carbon-fiber thermoset polymer matrix composite core used in overhead electrical conductors.
But commercializing ACCC Conductor was not the end of CTC Global’s development effort. In many respects, it was the beginning.
From a Conductor Product to an Engineering Platform
As utilities began deploying ACCC Conductor in increasingly diverse applications and environments, CTC Global continued working with customers, research organizations, manufacturing partners, hardware suppliers and installation specialists to address new engineering requirements.

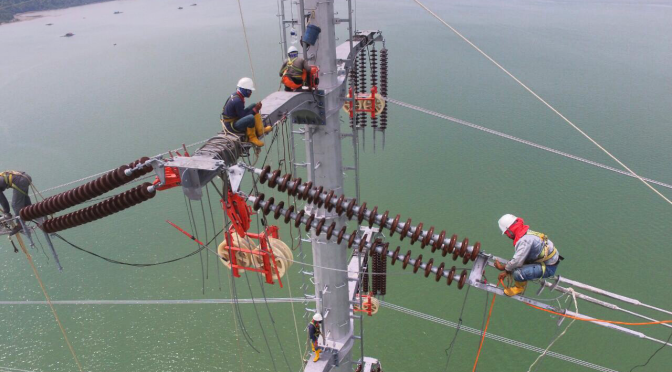

Very long spans, for example, can present substantially different mechanical challenges than conventional transmission-line sections. River crossings, lake crossings and mountainous terrain may require increased tensile strength, greater stiffness and exceptionally low thermal expansion to manage sag, blowout and clearances.
These requirements led CTC Global to develop ACCC ULS, which incorporates a higher-strength, higher-modulus composite core. While the standard ACCC core offers approximately 310 ksi tensile strength, the ULS core increases tensile strength to approximately 375 ksi while further reducing thermal expansion. This expanded the range of applications where ACCC technology could provide substantial value.
Extreme weather created another set of engineering requirements. Heavy ice accumulation can dramatically increase conductor weight and sag, while wind can impose substantial mechanical loads and clearance challenges. CTC Global subsequently developed ACCC AZR, incorporating higher-strength aluminum-zirconium alloy to further enhance conductor strength and performance for demanding loading environments.
In August 2026, CTC Global continued this progression with the introduction of ACCC Plus®. Positioned between standard ACCC and ACCC ULS, ACCC Plus provides transmission engineers with another option for optimizing strength, sag, span length, structure spacing, clearances and overall project economics.
This progression reflects an important principle behind CTC Global’s development philosophy: transmission projects are not all the same.
Rather than attempting to address every application with a single conductor configuration, the expanding ACCC platform provides engineers with additional tools to optimize conductor selection around the actual mechanical, electrical, environmental and economic requirements of each project.
Adding Verification to Advanced Conductor Technology
Advanced materials can deliver substantial performance advantages, but electric utilities understandably require a very high level of confidence in infrastructure expected to operate reliably for many decades. That confidence must extend beyond initial design calculations and laboratory testing to include manufacturing quality, transportation, handling and installation.
This challenge led to another important development: the ACCC InfoCore® System.
The InfoCore System incorporates optical fibers within the ACCC composite core, enabling its integrity to be verified during manufacturing, following transportation and handling, during installation and after the conductor has been installed and dead-ended.
Rather than relying solely on procedures and visual inspection, InfoCore provides an additional means of confirming that the conductor’s composite core has maintained its integrity throughout the manufacturing and installation process.
This represents an important evolution in advanced transmission technology. Innovation should not require utilities to accept greater uncertainty. Properly engineered innovation should help reduce it.
Elia in Belgium demonstrated the value of this capability when it utilized the InfoCore System on a major 380 kV reconductoring project between Belgium and the Netherlands. The technology provided an additional layer of assurance during installation of a critical transmission asset.
From Verification to Transmission Intelligence
In February 2026, CTC Global took another major step forward with the introduction of the GridVista™ System.
For most of the history of the electric power industry, an overhead conductor has essentially been a passive asset. Electricity flows through it, engineers calculate its expected behavior, inspections assess its physical condition, weather stations provide environmental information and point sensors can measure selected parameters. The conductor itself, however, has traditionally provided relatively little continuous information about what is happening along its length.
GridVista begins to change that relationship.
By integrating sensing capability into ACCC Conductor, GridVista is being developed to provide information about conditions including temperature, strain and vibration along the transmission line with high location precision. CTC Global is working with Google Cloud and Tapestry technologies to transform these data into useful information that can support anomaly detection, asset-health assessment, dynamic line ratings and more informed operational decisions.
Consider the progression.
The original ACCC Conductor enabled higher capacity, reduced electrical resistance and substantially lower thermal sag.
ACCC ULS and AZR expanded the mechanical and environmental operating envelope.
ACCC Plus adds another level of engineering flexibility.
InfoCore introduced embedded integrity verification.
GridVista is now moving the conductor toward becoming a source of continuous operating intelligence.
What began as an effort to create a better-performing conductor has evolved into a much broader transmission technology platform.
More Than a Datasheet
As interest in advanced conductors continues to grow, specifications such as core strength, thermal expansion, aluminum area, rated temperature, ampacity and sag naturally receive substantial attention. These metrics are important, but they represent only part of the engineering equation.
An overhead conductor operates as part of a system.
Long-term performance depends on the interaction among core materials, resin systems, aluminum strands, manufacturing processes, conductor stranding, connectors, dead-ends, splices, installation procedures, sheave diameters, pulling tensions, handling practices, quality-control systems, crew training and field support.
Hardware is especially important. A dead-end or splice that must reliably transfer thousands or tens of thousands of pounds of mechanical load into an advanced composite core is not simply an accessory. It is an integral part of the conductor system and must be designed, tested, manufactured and installed accordingly.
Installation experience is equally important. Advanced materials can provide exceptional performance, but realizing that performance in the field requires appropriate equipment, procedures, training and support.
These lessons are one reason CTC Global has continued investing not only in conductor technology, but also in manufacturing capabilities, conductor and hardware partnerships, installation training, field-service support, testing, quality systems and standards development.
Experience Becomes Part of the Technology
Today, more than 300 utilities and industrial customers in more than 70 countries have selected ACCC Conductor technology for more than 1,600 projects worldwide. Those projects are supported by CTC Global’s core manufacturing facilities, regional conductor manufacturing partners, qualified hardware suppliers and an extensive network of trained installation professionals.
The numbers demonstrate the scale of adoption, but they tell only part of the story.
Every completed project contributes engineering knowledge. Every installation provides experience. Every unusual span, difficult terrain condition, high-temperature environment, ice event, wind event, hardware installation, inspection and operating year contributes to a growing body of knowledge.
Over time, that experience becomes part of the technology itself.
It informs product development. It improves manufacturing processes. It strengthens installation procedures. It helps engineers anticipate project-specific challenges. It supports standards development and provides utilities with a growing body of real-world performance data upon which future decisions can be based.
For critical infrastructure expected to remain in service for decades, time and experience are important elements of qualification.
Innovation Is a Collaborative Process
None of this progress has occurred in isolation.
The evolution of ACCC technology has been supported by electric utilities, transmission owners, research laboratories, universities, engineering firms, standards organizations, conductor manufacturers, hardware suppliers, installation contractors and many other participants throughout the global electric power industry.
Organizations such as ASTM International, IEEE, IEC, CIGRE and numerous national and regional industry groups have helped create technical frameworks through which new technologies can be independently evaluated, tested, standardized and ultimately trusted.
Utility engineers and field personnel have contributed equally important knowledge. Their questions, project requirements, testing programs and field experience have continuously helped identify new challenges and opportunities for improvement.
That collaborative engineering process is one of the reasons high-performance conductors have moved from a relatively specialized technology category two decades ago to an increasingly important tool for transmission modernization today.
The Next Chapter Is Already Beginning
The transmission challenges facing the electric power industry are substantial, but so are the opportunities.
Utilities around the world are being asked to connect new generation, serve rapidly growing loads, reduce congestion, improve resilience, replace aging infrastructure and accomplish much of that work using transmission corridors that already exist.
Advanced conductors cannot solve every transmission challenge. But they can provide engineers with a powerful tool for extracting substantially greater performance from both existing and new transmission infrastructure.
CTC Global’s objective has never been simply to introduce a new conductor and stop.
ACCC raised the bar for capacity, efficiency and sag performance. ACCC ULS expanded the mechanical envelope. ACCC AZR addressed additional extreme-loading requirements. ACCC Plus provides another level of design flexibility. InfoCore brought integrity verification into the conductor itself. GridVista is now beginning to transform the conductor into an intelligent transmission asset.
More than twenty years after the first commercial ACCC installations, the engineering continues.
Because the objective is not simply to build a better conductor.
It is to keep raising the bar for what an overhead transmission system can do.
